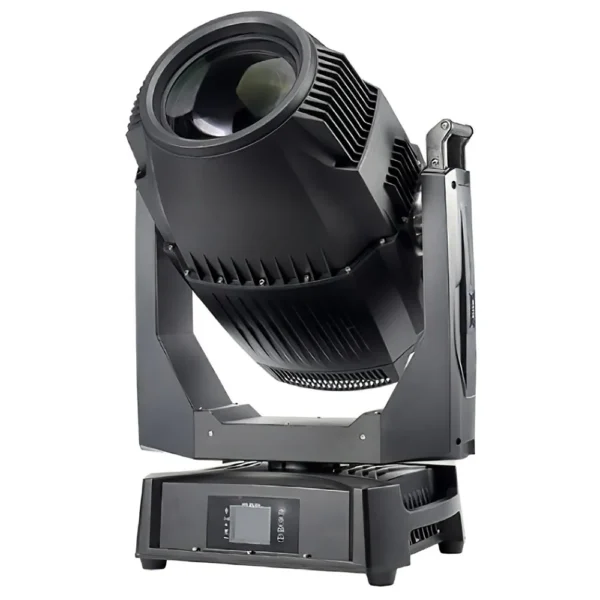

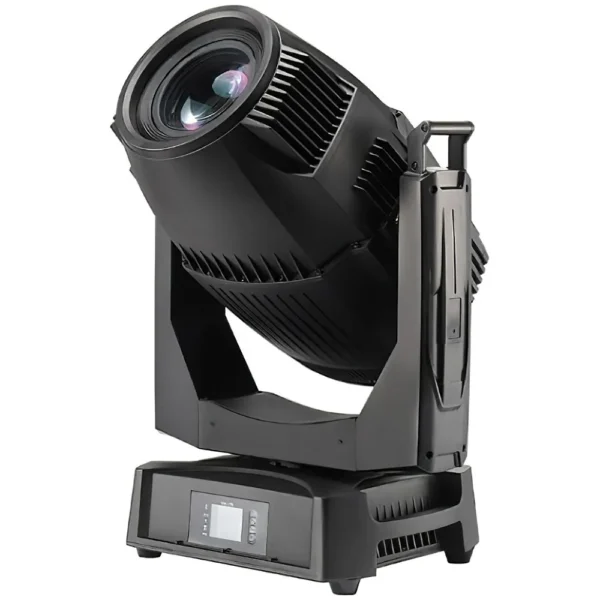

380W 4-in-1 Moving Head Pattern Framing Light

MAIN FEATURES

Voltage: AC90V-240V, 50/60Hz
Total Power: 600W/90V
Light Source: PHILIPS MSD Silver 380W, lifespan ≥1500H
Illuminance: 560,000 Lx at 10 meters
Color Temperature: 7800K
Optical Angle: 3° (beam mode), 5°~32° (pattern mode), 18°~23° (color mode)
Dimming: Dual-blade mechanical dimming, linear dimming from 0 to 100%
Strobe: Up to 25Hz, selectable random or pulse strobe
Atomization: Independent atomization frosted light system
Color System: CMY color mixing system, 3 color wheels with 4 colors each
Pattern System: 1 rotating pattern wheel with 8 patterns + white circle, with pattern shaking and positioning functions. 1 fixed pattern wheel with 14 patterns + white circle. Variable speed, shaking, and bi-directional rainbow flowing effects.

2 Prism Wheels: 16-facet and 8-facet prisms, can be layered for infinite dynamic and beam effects
Optical System: High-precision glass optical lens system with electronic linear high-definition adjustment
Cutting System: Independent self-developed cutting, capable of cutting various shapes
Control: Equipped with international standard DMX512 3-pin transmission, RDM function, high-temperature automatic protection
Pan/Tilt: Horizontal scan angle of 540°, vertical scan angle of 270°. Adjustable speed for horizontal/vertical movement. Auto horizontal/vertical calibration, photocoupler positioning for initial position calibration and maintenance. Vertical lock function to protect the fixture during transportation. Low noise, high torque, smooth operation. Rapid response: X-axis horizontal scan speed of 2.2 seconds, Y-axis horizontal scan speed of 1.0 second. Indexing function and 32-bit precise fine-tuning.
Display: LCD screen with English and Chinese display, clean and convenient
Cooling: One-in, one-out design with cooling fans and dustproof ventilation windows
Control Channels: Optional 33/27/25 channels
Protection Level: IP20, optional high protection level of up to IP54 with rain cover
Connectivity: 3-pin signal line input/output and direct signal interface, power input
Packaging: Waterproof and shockproof flight case or cardboard box
Product Dimensions: 659×422×301mm
Net Weight: 22.4kg
