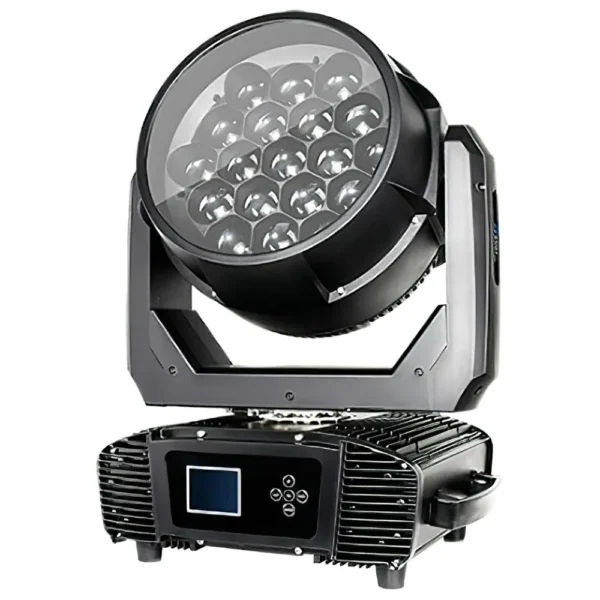

19X15W LED Focus Moving Head Color Wash Light
MAIN FEATURES
Input Voltage: AC100V-AC240V, 50/60Hz
Rated Power: 350W
Light Source System: 19x15W RGBW 4IN1 LEDs
Colors: RGBW limitless color mixing with uniform and pure color output
Zoom Angle: 10°-60° smoothly and quietly with linear motor-driven zoom system
Optical System: High-definition optical system with durable quartz glass light rod for quick and smooth motorized zoom,
Beam angle: 5 degrees-50 degrees, providing even and soft color wash and authentic color mixing effects.
X-axis Scan: Option of 630°/540°/360° (8/16-bit precision scanning)
Y-axis Scan: Option of 270°/180°/90° (8/16-bit precision scanning) with advanced smooth/fast/quiet high-precision scanning system.
Linear Dimming: 0-100% linear dimming system with 6 built-in static and dynamic macro effects, adjustable speed.
High-Speed Strobe: 1-25 times/sec with adjustable speed and a variety of preset and random strobe effects (Regular strobe, Lightning strobe, Random strobe, Strobe with sudden dark gradual bright, Strobe with sudden bright gradual dark).
Control Channels: 15/27 dual-channel mode
Control Mode: DMX512, Master-Slave, Sound control or auto-operation
Display System: Pixel LCD display with 4 function buttons, 180° rotation feature, LCD auto-off after 60 seconds, DMX signal indicator
Heat Dissipation System: High-efficiency, low-noise fan cooling with automatic speed adjustment based on temperature. Overheating protection design.
Input/Output: POWERCON power input/output, with power switch and fuse holder. 3-pin XLR connectors for input/output.
Operating Environment: -35℃ to 45℃ operating temperature
Material: ABS + Aluminum plate + PMMA
Product Dimensions: 360x260x400mm
Package Dimensions: 450x310x410mm
Flight Case: 590x790x510mm (One unit per case)
Gross Weight: 8kg
Net Weight: 7kg
